What is Brass Gas Ball Valve?
Brass gas ball valve is a type of valve used to control the flow of gas through a pipeline. Brass gas ball valves are essential components in gas supply systems, offering reliable control and safety features. Their robust construction, ease of operation, and suitability for high-pressure applications make them a preferred choice for managing gas flow in residential, commercial, and industrial settings. Whether used for routine control or emergency shut-off, these valves provide a dependable solution for safe and efficient gas management.
The below article we will share the information for the brass gas valve from its Structure, Types, Size, Pressure, etc.
Inner structure for brass gas ball valve
Structure for a Brass Gas Ball Valve
Understanding the structure of a brass gas ball valve is essential for proper installation, maintenance, and troubleshooting. Here's a detailed breakdown of its components and functions:
brass pex ball valve
Main Components of a Brass Gas Ball Valve
1. Body (Valve Housing)
*Material: Typically made of brass for durability and corrosion resistance.
*Function: Encloses the internal components and connects to the gas pipe system.
2. Ball
*Material: Usually made of stainless steel, chrome-plated brass, or brass.
*Function: The spherical component with a hole through its center, controlling gas flow by its position.
3. Seats
*Material: Generally constructed from Teflon (PTFE) or other resilient materials.
*Function: Provides a seal against the ball to prevent leaks when the valve is closed.
4. Stem (Shaft)
*Material: Often made from brass or stainless steel.
*Function: Connects the ball to the external handle or actuator, allowing the ball to turn.
5. Handle
*Material: Made from aluminum, brass, or plastic for grip.
*Function: Manually turns the ball via the stem to open or close the valve.
*Types: Lever handle for larger valves or wing handle for smaller ones.
6. Packing
*Material: Typically made from Teflon (PTFE) or graphite.
*Function: Ensures a tight seal around the stem to prevent leaks.
7. Packing Nut
*Material: Brass or stainless steel.
*Function: Secures the packing material in place, ensuring a proper seal.
8. End Connections
*Types: Threaded (NPT), solder, or compression fittings.
*Function: Attaches the valve securely to the gas piping system.
9. Gaskets
*Material: Rubber, Teflon (PTFE), or other sealing material.
*Function: Provides additional sealing to prevent leaks at connections.
Detailed Breakdown and Functionality
1. Body (Valve Housing)
*Design: Typically consists of a one-piece, two-piece, or three-piece design depending on ease of maintenance and disassembly requirements.
*Connection: Threaded, soldered, or flanged ends to connect with the piping system.
2. Ball
*Design: The ball design includes a hollow core that allows gas to pass through when aligned with the pipe.
*Operation: Rotates 90 degrees to open or close the valve, providing reliable and secure shutoff.
3. Seats
*Seating Mechanism: Seats line the interior of the valve where the ball pivots, creating a secure seal.
*Maintenance: Requires periodic inspection and replacement to maintain valve efficiency.
4. Stem (Shaft)
*Connection: One end connects to the ball, and the other end connects to the handle.
*Sealing: Passes through the packing and packing nut to prevent gas from escaping around the stem.
5. Handle
*Operation: Provides leverage to rotate the ball via the stem.
*Indication: Often marked to show the open or closed position for easy identification.
6. Packing and Packing Nut
*Sealing: Packing material compresses around the stem, and the packing nut secures it in place.
*Adjustment: The packing nut can be tightened to maintain a proper seal over time.
7. End Connections
*Types and Compatibility: Different types ensure compatibility with various pipe materials and systems.
*Installation: Threaded connections offer easy installation and removal, while solder connections provide a permanent bond.
8. Gaskets
*Seal Integrity: Ensures a leak-proof connection between the valve and the pipe.
*Replacement: Regular inspection and replacement are necessary to maintain seal integrity.
Understanding the structure and functionality of a brass gas ball valve helps in selecting the right valve, ensuring proper installation, and carrying out effective maintenance. The main components such as the body, ball, seats, stem, handle, packing, and gaskets each play a crucial role in the valve’s operation, contributing to its reliability and efficiency in gas applications.
Handle Types of Brass Gas Ball Valves
Brass gas valves primarily have two main types of handles, though there are a few variations based on specific use cases and design preferences. Here are the main types of handles you will encounter:

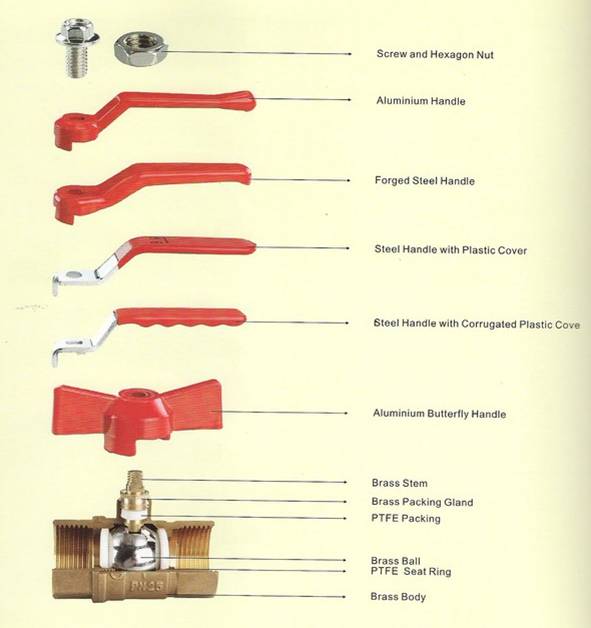

brass gas ball valve different handle
Main Types of Handles for Brass Gas Ball Valves
1. Lever Handle:
*Description: A straight, flat handle that extends outward from the valve. Lever handles are typically larger and provide a better grip and leverage for turning the valve. Usually we have below materials for the Lever Handle:
*Aluminum Handle
*Forged Steel Handle
*Steel Handle with Plastic Cover
*Steel Handle with Corrugated Plastic Cover
*Use Cases: Lever handles are commonly used in larger valves where more force might be needed to open or close the valve. They are prevalent in both residential and commercial applications due to their ease of use.
*Advantages: Provides a clear visual indication of the valve's position (open or closed). Easy to operate, even with gloves.
2. Wing Handle (Butterfly Handle):
*Description: A smaller, wing-shaped handle that can be turned with just a few fingers. These handles are more compact than lever handles.
*Use Cases: Wing handles are often used in smaller valves or in applications where space is limited, such as under sinks or in tight plumbing configurations.
*Advantages: More compact and can be easier to fit into tight spaces. Simple to rotate and typically found in residential applications.
Additional Handle Variations
While the lever and wing handles are the most common, there are a few other handle types you might encounter, especially in specialized applications:
3. T type Handle:
*Description: Shaped like a "T," this handle offers a balance between the lever and wing handle types.
*Use Cases: Often found in industrial applications where a more ergonomic or compact design is required.
*Advantages: Offers good leverage and ease of use in tight spaces.
Size and Pressure for Brass Gas Ball Valve?
The normal sizes for the brass gas ball valves are 1/4”, 3/8”,1/2”, 3/4”, 1” , 11/2”, 2”, etc. And normal pressure is PN10, PN15, PN20, PN25, PN30 and PN40. For more details, you can visit this post What Sizes and Pressure Brass Ball Balves Have?
brass ball valve sizes and pressure
Brass Gas Ball Valve VS. Brass Water Ball Valve
Key Differences Between Brass Gas Ball Valves and Brass Water Ball Valves
Both brass gas ball valves and brass water ball valves serve as critical components in plumbing systems, controlling the flow of gas and water, respectively. Despite their similar appearances and basic operational principles, there are several important distinctions between the two types of valves that are crucial for their specific applications.
Criteria | Brass Gas Ball Valves | Brass Water Ball Valves |
Material Specifications | High-Quality Brass: Treated to withstand high pressures and resist gas corrosion. | Durable Brass: Coated or sealed to prevent corrosion and mineral buildup in water. |
| Safety Standards: ANSI, ISO compliance for gas applications. | Safety Standards: AWWA, NSF standards for potable water systems. |
Sealing Mechanism | Special seals (PTFE, Viton) to provide a tight seal and resist gas permeation. | Seals suitable for water (EPDM, NBR) to ensure effective sealing against water. |
Pressure Rating | Rated for higher pressures, maintaining integrity under pressurized gas conditions. | Rated for lower pressures relative to gas ball valves; sufficient for typical water systems. |
Handle Design | Lockable handle or specific color (often yellow) indicating gas usage. | Standard lever or wing handle; sometimes color-coded (blue/red) for hot or cold water. |
Applications | Residential, commercial, industrial gas lines (stoves, heaters, furnaces, gas supply). | Plumbing systems controlling water flow (potable water, irrigation, general water supply). |
Media | Designed for natural gas, propane, and other flammable gases. | Specifically designed for water and other non-flammable liquids. |
Durability | Resists gas-specific issues like permeation and breakdown over time, ensuring safety. | Withstands water-specific issues like corrosion and mineral deposits for reliable service. |
Maintenance | Regular inspections for gas leaks and operation; prompt repair of damaged components. | Inspected for leaks, corrosion, buildup; periodic checks of seals and components. |
Regulatory Inspection | Frequent safety inspections and testing for compliance with gas safety standards. | Periodic inspections and water quality checks to comply with potable water standards. |
While brass gas ball valves and brass water ball valves may look similar and operate on the same basic principles, they are designed with specific considerations tailored to their respective mediums. Gas ball valves prioritize safety and durability to handle flammable gases, while water ball valves focus on corrosion resistance and compatibility with water systems. Understanding these key differences is crucial for selecting the appropriate valve for your specific application, ensuring both safety and efficiency.
Tests and Standards for Brass Gas Ball Valves
Brass gas ball valves are subject to various tests and standards to ensure they meet the required safety and performance criteria for gas applications. Here's an overview of the key tests and standards applicable to these valves:
Key Tests:
1. Pressure Tests:
- Hydrostatic Pressure Test: This test involves submerging the valve in water and applying pressure to check for leaks and ensure the valve can withstand the maximum operating pressure without failure.
- Pneumatic Pressure Test: Similar to the hydrostatic test, this involves using air or gas under pressure to check for leaks in the valve.
2. Leak Tests:
- Gas Leak Test: This test checks the valve for any potential gas leaks when it is in the closed position. It is typically conducted using a pressurized gas and a leak detection solution or electronic gas detector.
- Bubble Test: The valve is submerged in water or another liquid, and gas is passed through it to check for any bubbles indicating a leak.
3. Operational Tests:
- Torque Test: This determines the force required to operate the valve, ensuring it can be easily turned on and off without excessive effort.
- Cycling Test: The valve is repeatedly opened and closed to simulate long-term use, ensuring the durability and reliability of the valve mechanism over time.
4. Temperature Tests:
- High and Low-Temperature Tests: The valve is subjected to extreme temperatures to ensure it can perform effectively under varying temperature conditions commonly found in gas applications.
brass valve brass fittings test
Key Standards:
1. International Standards:
- ISO 9001: Quality management systems standard ensuring the valve manufacturing process adheres to high-quality standards.
- ISO 5211: Specifies requirements for valve actuators, ensuring compatibility and operational effectiveness.
2. American Standards:
- ANSI (American National Standards Institute):
- ANSI B16.33: Standard for threaded end gas valves, specifying the requirements for pressure rating, materials, dimensions, and testing.
- ANSI B16.38: Standard for large metallic gas valves, covering requirements for various valve types used in gas systems.
- ASTM (American Society for Testing and Materials):
- ASTM B584: Specification for bronze and brass sand castings for valves, ensuring material integrity and suitability for gas applications.
- ASTM F1970: Standard specification for special engine-generator assemblies testing, applicable to components like valves that are used in gas systems.
3. European Standards:
- EN 331: European standard for gas safety shut-off valves, specifying the requirements for design, construction, and testing of gas ball valves.
- EN 1254-2: Standard for copper and copper alloys, ensuring the material used in valves meets the required chemical composition and mechanical properties.
4. National Standards:
- CSA (Canadian Standards Association):
- CSA 6.11: Standard for the performance of manually operated gas valves for use in natural gas and propane gas piping systems.
- BS (British Standards):
- BS 1552: Standard for globe and gate valves for gas applications, relevant for quality and performance assurance in gas valves.
Marking and Certification:
1. Certification Labels:
- Valves meeting these standards often bear certification marks (such as CSA, CE, UL) indicating they have passed the necessary tests and comply with the relevant standards.
2. Documentation:
- Manufacturers provide documentation detailing the valve's compliance with applicable standards, including test reports and material certifications.
Conclusion:
Brass gas ball valves undergo rigorous testing and must comply with a variety of standards to ensure they are safe and effective for gas applications. These tests and standards cover aspects such as pressure tolerance, leak prevention, operational reliability, and material quality. Adhering to these standards helps ensure that brass gas ball valves provide reliable performance and enhance safety in residential, commercial, and industrial gas systems.
Installation for Brass Gas Ball Valve
Installation Guide for Brass Gas Ball Valves
Proper installation of a brass gas ball valve is essential to ensure safe and efficient operation.
Here’s a step-by-step guide to help you install a brass gas ball valve correctly:
Tools and Materials Needed:
*Brass gas ball valve
*Pipe wrench or adjustable wrench
*Thread sealant tape (PTFE tape) or pipe dope (thread sealant paste)
*Pipe cutter or hacksaw (if cutting pipes)
*Deburring tool or sandpaper (for cleaning pipe ends)
*Safety gloves and goggles
brass gas valve installation
Step-by-Step Installation:
1. Preparation:
Turn Off Gas Supply: Ensure the gas supply is turned off at the main shut-off valve before starting the installation.
Vent Gas Lines: Allow any residual gas in the lines to vent out safely by opening a gas appliance or another valve downstream of your work area.
2. Select the Valve Location:
Accessibility: Choose a location that is easily accessible for operation and maintenance.
Proper Orientation: Ensure the valve is installed in the correct orientation with the flow direction (often indicated by an arrow on the valve body).
3. Cut and Prepare the Pipe:
Measure and Cut: Measure the length of the pipe where the valve will be installed and cut it to the appropriate length using a pipe cutter or hacksaw.
Deburr and Clean: Use a deburring tool or sandpaper to remove any burrs or rough edges from the cut ends of the pipe. Clean the pipe ends thoroughly to ensure a proper seal.
4. Apply Thread Sealant:
Threaded Connections: For threaded valves, wrap the male threads of the pipe with thread sealant tape (PTFE tape) or apply pipe dope. Wrap the tape clockwise (in the direction of the threads) to ensure it stays in place when the valve is screwed on.
5. Attach the Valve:
Threaded Valves: Screw the brass gas ball valve onto the threaded pipe ends by hand to start. Tighten it using a pipe wrench or adjustable wrench. Be cautious not to over-tighten, as this may damage the valve or threads.
Sweat (Solder) Valves: For sweat valves, follow these steps:
*Clean the valve and pipe surfaces where they will be joined.
*Apply flux to the pipe ends and the inside of the valve fittings.
*Insert the pipes into the valve and heat the joint with a propane torch until the solder flows into the joint, creating a secure seal.
6. Check Alignment and Connections:
Ensure Proper Alignment: Verify that the valve is aligned correctly with the piping system and there are no misalignments or gaps.
Tighten Connections: Double-check all connections to ensure they are tight and secure.
7. Test for Leaks:
Turn On Gas Supply: Slowly turn on the gas supply at the main shut-off valve.
Check for Leaks: Use a leak detection solution or soapy water to check all connections for leaks. Apply the solution generously around the connections and look for bubbles that indicate a leak.
Address Leaks: If you detect any leaks, immediately turn off the gas supply. Tighten the connections further and reapply the thread sealant if necessary. Retest for leaks until all connections are leak-free.
8. Final Check and Operation:
Inspect Installation: Conduct a final inspection to ensure everything is properly installed and secure.
Operate the Valve: Open and close the valve a few times to ensure smooth operation and proper alignment.
If you have any inquiry or question for the brass pex fittings or brass ball valves, welcome to contact VPEXCO.
