What are DZR Brass Pex Fittings? - A Comprehensive Guide
About DZR Brass
What is DZR Brass?
DZR is a short for Dezincification Resistant, dezincification-resistant brass also called DZR brass or DR brass, is a special brass alloy whose main components are copper (Cu )and zinc (Zn), but in order to enhance its anti-desizincing performance, a small amount of arsenic (As) is also added. This addition gives DZR brass excellent corrosion resistance, especially in fresh water and sea water. The corrosion resistance of DZR brass is better than that of ordinary brass, mainly due to the addition of arsenic, which can effectively inhibit the loss of zinc crystals in brass, thereby avoiding stress corrosion cracking. In addition, DZR brass also has good processability and hot forging properties, and is suitable for fields such as water fittings produced by hot stamping and machining.
Why Dezincification is a Problem?
Dezincification is a form of corrosion that occurs when zinc leaches out of the brass alloy when it comes into contact with certain corrosive elements, such as highly chlorinated water or mildly acidic environments. This process results in a porous, weakened structure comprised mainly of copper, which can lead to brittle brass fittings and potential failure in plumbing systems.
Why Dezincification is a problem? Because when dezincification occurs:
1. Selective leaching: The zinc is selectively leached out of the brass, leaving behind a porous, copper-rich structure.
2. Weakened structure: This process weakens the brass, making it more susceptible to failure.
3. Reduced integrity: The porous structure left behind after zinc leaching can lead to leaks and eventual failure of the fitting.
4. Water contamination: As the zinc leaches out, it can contaminate the water supply.
5. Lead release: In brass alloys that contain lead, dezincification can also lead to increased lead release into the water, posing health risks.
6. Reduced lifespan: Fittings affected by dezincification have a significantly shorter lifespan than those that resist this form of corrosion.
7. Safety concerns: In plumbing systems, especially those carrying potable water, dezincification can compromise the safety and reliability of the system.
8. Increased maintenance: Fittings prone to dezincification may require more frequent replacement, increasing maintenance costs.
9. Compliance issues: In many jurisdictions, plumbing components must meet certain standards for corrosion resistance, which dezincification-prone brass may fail to meet.
To address these issues, manufacturers have developed Dezincification Resistant (DZR) brass alloys. These alloys typically contain small amounts of other elements (such as arsenic, antimony, or phosphorus) that inhibit the dezincification process, making the fittings more durable and safer for use in plumbing systems, especially those carrying potable water.
How DZR Brass Solves This?
Composition of DZR Brass and its resistance to dezincification.
DZR brass is engineered to combat this issue by adjusting the alloy's composition and typically including trace amounts of elements like arsenic or antimony. These elements stabilize the alloy, making it significantly more resistant to the corrosion processes that cause dezincification. The typical composition of DZR brass might include:
Copper (Cu)
Zinc (Zn)
Lead (Pb)
Arsenic (As) or Antimony (Sb)
different types of brass raw material for brass pex fittings

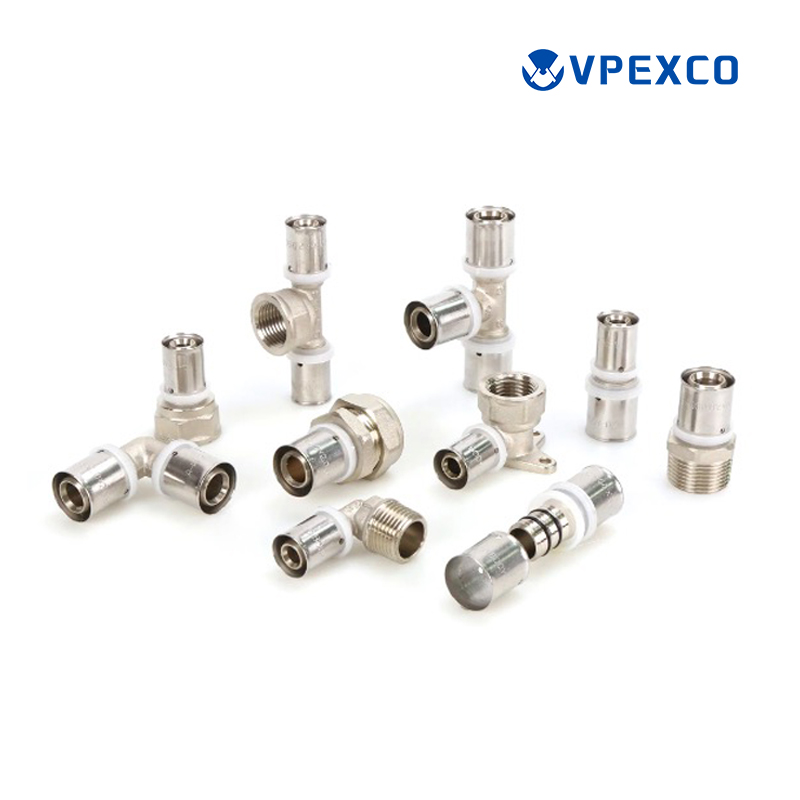

DZR Brass Pex Fittings: An Overview
Key Features: Corrosion resistance, durability, and reliability
When it comes to plumbing systems, DZR brass Pex fittings stand out due to their impressive attributes. Focusing on corrosion resistance, durability, and reliability, these fittings ensure longevity and consistent performance. Here’s a closer look at these key features:
1. Corrosion Resistance
Dezincification-Resistant Composition: The primary advantage of DZR brass is its resistance to dezincification. This specialized brass alloy includes elements that stabilize the structure, preventing zinc from leaching out in aggressive water conditions.
Protection Against Various Corrosive Agents: DZR brass fittings resist not just dezincification but also other forms of corrosion caused by chemicals in the water, such as chlorine and mild acids. This makes them ideal for a variety of environments, from residential plumbing to industrial applications.
Longevity of System Integrity: By resisting corrosion, these fittings maintain their structural integrity and appearance over time, reducing the need for frequent replacements and maintenance.
2. Durability
Robust Material Strength: DZR brass is known for its robust mechanical properties. These fittings are designed to withstand high pressures and mechanical stresses, making them suitable for both hot and cold water systems.
Resistance to Wear and Tear: The high durability of DZR brass means that the fittings can cope with the rigors of daily use, including temperature fluctuations, water hammer, and continuous flow, without degrading.
Long-Term Performance: Due to their durable nature, DZR brass Pex fittings offer a long service life, ensuring reliable plumbing systems that last for decades.
3. Reliability
Consistent Performance: The superior material properties of DZR brass ensure that the fittings perform reliably under various conditions. This consistency is crucial for maintaining efficient water flow and preventing leaks.
Secure and Tight Connections: These fittings are engineered to provide secure, leak-proof connections with Pex tubing. Their design often includes features that enhance the sealing and locking mechanisms, ensuring that the joints remain tight over time.
Regulatory Compliance: DZR brass fittings typically meet or exceed industry standards and regulatory requirements for potable water systems. This compliance ensures that they are safe, legal, and reliable for all approved applications.
Maintenance and Inspection: Their reliability reduces the need for frequent maintenance and inspection, further lowering the total cost of ownership and operational disruptions.
Common Applications
DZR brass is used in a variety of applications where water quality and system longevity are paramount, including:
*Potable Water Systems: Pipes, valves, and fittings that convey drinking water.
Heating Systems: Components within boilers and radiators.
*Marine Environments: Fixtures and fittings exposed to seawater.
*Industrial Applications: In processes where resistance to corrosive environments is essential.
Benefits of Using DZR Brass Pex Fittings
1. Enhanced Corrosion Resistance:
DZR brass is specifically formulated to resist dezincification, a type of corrosion that affects
standard brass. This makes DZR brass fittings more durable in aggressive water conditions.
2. Increased Longevity:
DZR brass fittings have a longer lifespan compared to standard brass fittings. They maintain
their mechanical strength over time, even when exposed to corrosive environments.
3. Reliability in Plumbing Systems:
DZR brass fittings are particularly suitable for potable water applications. They help prevent
leaks and system failures caused by dezincification.
4. Compliance with Standards:
DZR brass fittings often meet strict industry standards for use in potable water systems.They can pass specific standards for lead-free plumbing.
5. Versatility:
DZR brass can be easily machined and formed, making it suitable for various types of fittings.
6. Compatibility with PEX Piping:
DZR brass fittings are designed to work well with PEX (cross-linked polyethylene) piping
systems.
7. Quality Assurance:
Manufacturers often have strict quality control processes to ensure the dezincification
resistance of their products. For example, the DZR brass fitings from VPEXCO have strict quality request from the raw materials, we have the metal analyse for the DZR brass raw materials, to control the quality from beginning.
8. Long-term Cost-effectiveness:
Although potentially more expensive initially, the increased lifespan and reduced need for replacement make DZR brass fittings cost-effective in the long run.
These benefits make DZR brass PEX fittings a reliable, durable, and corrosion-resistant choice for plumbing applications, especially in environments where standard brass might be vulnerable to dezincification.
brass pex fittings manufacturer raw material
Comparison: DZR Brass vs. Regular Brass
The below table provides a clear and concise comparison of DZR Brass vs. Regular Brass based on material composition, performance in plumbing systems, and cost implications.
Feature | DZR Brass | Regular Brass |
Material Composition | - Higher copper content (e.g., 62% for COBRA DZR brass) | - Lower copper content |
| - Lower zinc content | - Higher zinc content (typically more than 15%) |
| - Contains additional elements like arsenic, tin, or aluminum | - May not have additional corrosion-resistant elements |
| - Carefully controlled impurity levels and additive quantities | |
Performance in Plumbing Systems | - Highly resistant to dezincification | - Susceptible to dezincification, especially in hard or corrosive water |
| - Better corrosion resistance, especially in aggressive water conditions | - May become porous and brittle over time |
| - Maintains mechanical strength over time | - More likely to corrode in acidic or alkaline water |
| - Suitable for both hot and cold water lines | - May not meet current plumbing standards in some regions |
| - Passes specific standards for lead-free plumbing | |
Cost Implications | - Generally more expensive initially | - Initially less expensive |
| - More cost-effective in the long run due to increased lifespan | - May require more frequent replacement, increasing long-term costs |
| - Reduced need for replacement | - Potential for system failures and associated repair costs |
| - May be required by building codes, potentially avoiding costly replacements | |
What Countries request DZR Brass Fittings?
Here are some countries that request DZR (Dezincification Resistant) brass fittings:
South Africa: The use of DZR brass for components of brass plumber’s fittings that are in contact with water is mandated by national building inspectors. Non-compliant brassware is required to be removed according to statutory law.
Australia and New Zealand: The development and use of DZR brass fittings have been significant, particularly in response to issues with dezincification in potable water fittings and high-profile PEX fitting failures.
Europe: The introduction of DZR brass in the 1980s solved severe dezincification problems in potable water fittings, leading to widespread use across various European countries.
Besides the above countries, other countries near the sea, like Egypt, United States, Chile, etc.
These countries have recognized the importance of DZR brass fittings in ensuring the longevity and safety of plumbing systems, particularly in environments with aggressive water conditions that can lead to dezincification and subsequent failures of standard brass fittings.
Maintenance Tips for DZR Brass Pex Fittings
How to ensure longevity and optimal performance?
1. Regular Cleaning:
Keep fittings clean and free from dust.
Clean regularly, especially in public spaces or areas exposed to environmental contaminants.
2. Proper Handling:
Always use gloves when handling fittings to prevent contact with salts and acids from perspiration.
3. Avoid Harsh Chemicals:
If possible, avoid commercial polishes that contain acids or ammonia.
If cleaning is necessary, use a gentle abrasive slurry (e.g., precipitated calcium carbonate) instead of harsh chemical cleaners.
4. Thorough Rinsing:
After cleaning, rinse fittings thoroughly to remove any cleaning residues.
Residues can react with the copper in the brass, potentially causing corrosion.
5. Water Quality Management:
Monitor and regulate water temperature - keep it below 70°C if possible.
Maintain appropriate water chemistry - avoid low bicarbonate and high chloride content.
6. Corrosion Inhibitors:
Consider using corrosion inhibitors in the plumbing system to further protect fittings.
7.Regular Inspections:
Periodically inspect fittings for signs of corrosion or dezincification (e.g., white powdery substance, mineral stains, or pinkish hue).
8. Proper Installation:
Ensure fittings are installed correctly to prevent unnecessary stress or exposure to corrosive elements.
9. Avoid Mixed Metals:
When possible, use consistent materials throughout the plumbing system to prevent galvanic corrosion.
10.Coating Protection:
In some cases, applying a protective coating (like clear lacquer or wax) can provide additional protection against corrosion.
11. Replace When Necessary:
If signs of severe dezincification are observed, replace the fitting promptly to prevent system failure.
12. Professional Maintenance:
Consider having a professional plumber periodically inspect and maintain your plumbing system, including DZR brass fittings.
By following these maintenance tips, you can help ensure the longevity and optimal performance of DZR Brass PEX Fittings in your plumbing system. Remember that while DZR brass is resistant to dezincification, proper care and maintenance are still important for long-term reliability.
Trends and future developments in Pex systems and fittings technology
Based on the search results and current industry trends, here are some potential trends and future developments for DZR brass fittings in PEX systems and fittings technology:
1. Increased Adoption:
- As awareness of dezincification issues grows, more regions and building codes may require the use of DZR brass fittings in plumbing systems.
- This trend is likely to continue, especially in areas with aggressive water conditions.
2. Improved Alloy Compositions:
- Ongoing research may lead to even more corrosion-resistant brass alloys, further improving the longevity and performance of DZR fittings.
- New additives or manufacturing processes could enhance dezincification resistance.
3. Integration with Smart Home Technology:
- Future DZR brass fittings might incorporate sensors to monitor water quality, pressure, or early signs of corrosion.
- This could allow for predictive maintenance and early detection of potential issues.
4. Expansion of Application Areas:
- While currently focused on potable water systems, DZR brass fittings may find increased use in other applications like industrial processes or specialized plumbing systems.
5. Standardization:
- There may be efforts to create more unified global standards for DZR brass fittings, making it easier for manufacturers to produce compliant products for international markets.
6. Cost Reduction:
- As manufacturing processes improve and demand increases, the cost of DZR brass fittings may decrease, making them more accessible for a wider range of applications.
These trends suggest a future where DZR brass fittings become more prevalent, technologically advanced, and integrated into broader plumbing and smart home systems, while potentially becoming more cost-effective and sustainable.
If you have more questions or any inquiry for our DZR brass pex fittings, DZR brass valves or pex installation tools, welcome to contact us
