Brass press fittings are widely used in plumbing and heating systems due to their ease of installation, reliability, and durability. Different types of press fittings—such as U Type, TH Type, and RFZ Type—vary in their design, compatibility, and applications. Understanding these differences can help you make an informed decision for your specific needs.

press fittings U type for pex al pex gas pipes

U Type Press Fittings

Overview

- **Design**: U Type fittings have a distinct groove shaped like the letter "U".

- **Sealing Method**: Typically uses an O-ring for sealing.

- **Pressing Tools**: Requires specific pressing tools compatible with U Type fittings.

Characteristics

- **Compatibility**: Most commonly used in European applications and compatible with various brands of pressing tools.

- **Applications**: Suitable for potable water, heating systems, and compressed air systems.

- **Materials**: Made from high-quality brass, ensuring corrosion resistance and long-term durability.

Pros

- Broad compatibility with various press tools.

- Reliable seal provided by the O-ring.

Cons

- Requires specific pressing profiles, so compatibility with tools is essential.

- May be found in region of Europe and Africa.

brass press fittings TH type for pex al pex pipes

TH Type Press Fittings

Overview

- **Design**: TH Type fittings feature a more rounded pressing profile.

- **Sealing Method**: Utilizes an O-ring for sealing, ensuring leak-proof joints.

- **Pressing Tools**: Requires tools designed specifically for TH Type fittings.

Characteristics

- **Compatibility**: Widely used in North America and other regions; compatible with multiple pressing tools.

- **Applications**: Ideal for potable water systems, heating installations, and gas systems.

- **Materials**: Constructed from robust brass, offering excellent corrosion resistance and strength.

Pros

- Popular in multiple regions, including North America.

- Provides a strong seal with appropriate tools.

Cons

- Requires specific tools, limiting flexibility if you use multiple fitting types.

- Availability can vary depending on the region.

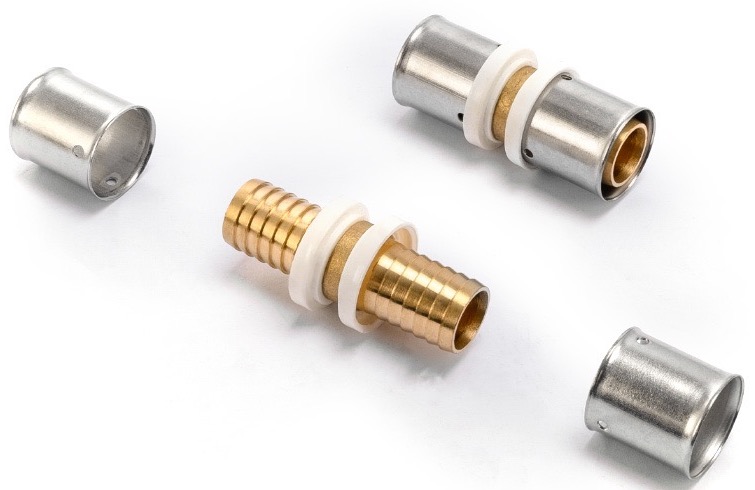

brass pex pipe fittings RFZ type for pex tubo

brass pex pipe fittings RFZ type for pex pipe

RFZ Type Press Fittings

Overview

- **Design**: RFZ Type fittings have a distinctive profile that combines features of U and TH types.

- **Sealing Method**: Sealed using an O-ring, ensuring a reliable and secure connection.

- **Pressing Tools**: Requires specific pressing tools calibrated for RFZ Type fittings.

Characteristics

- **Compatibility**: Not as universally compatible as U or TH types but offers unique advantages in specific applications.

- **Applications**: Used in a variety of plumbing systems, especially those requiring higher safety standards.

- **Materials**: Manufactured from high-grade brass, providing durability and resistance to corrosion.

Pros

- Tailored for specialized applications requiring high reliability.

- Combines features of both U and TH types for versatile use.

Cons

- Limited compatibility with standard pressing tools.

- May be more expensive and harder to find than U and TH types.

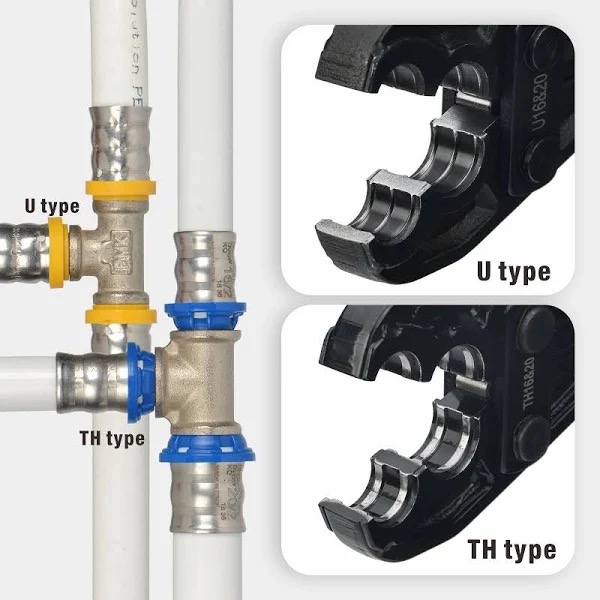

brass press fittings u type vs th type for pex al pex pipe

Comparison Summary

Feature	U Type	TH Type	RFZ Type
Design	U-shaped groove	Rounded profile	Combination profile
Sealing Method	O-ring	O-ring	O-ring
Pressing Tools	Specific to U Type	Specific to TH Type	Specific to RFZ Type
Compatibility	Mostly European, Africa	Popular in North America Some European countries, and other regions	Specialized applications
Applications	Water, heating, gas	Water, heating, gas	Specialized plumbing systems
Pros	Broad tool compatibility, Reliable seal	Widely used, Strong seal	Combines U and TH features, High reliability
Cons	Tool-specific, Variable availability	Tool-specific, Variable availability	Limited tool compatibility, Higher cost

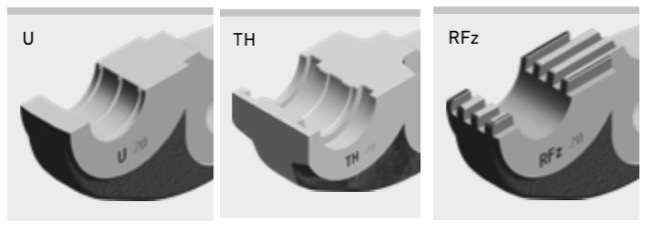

brass pex press fittings u type vs th type vs rfz type

Practical Tips for Choosing the Right Fittings

1. **Know Your Tools**: Identify the type of pressing tools you have or plan to use. Different press fittings require specific tool profiles, so ensure compatibility.

2. **Check Local Standards**: Be aware of regional preferences and standards for press fittings. U Type may be more common in Europe, while TH Type is often found in North America.

3. **Determine the Application**: Consider the requirements of your specific application, whether it's potable water, heating, or gas systems. Each fitting type has its unique strengths.

4. **Verify Supplier and Quality**: Always purchase from reputable suppliers to ensure the fittings meet the necessary quality and safety standards.

5. **Consider Versatility**: If you work on varied projects, you might opt for a fitting type that offers greater compatibility across different systems and tools.

pex pressing tool

Conclusion

Understanding the differences between U Type, TH Type, and RFZ Type brass press fittings can significantly impact the efficiency and safety of your plumbing or heating project. Each type has its specific design, compatibility, and ideal applications. By considering your pressing tools, regional standards, and specific system requirements, you can select the most suitable fitting type for your needs, ensuring reliable and durable installations.
